How Wide Is the Capacitance Range of Film Capacitors

As indispensable passive components in electronic circuits, film capacitors have always drawn engineers’ attention to their capacitance range and application suitability. Spanning from picofarads to farads, film capacitors offer a far broader capacitance range than other capacitor types, enabling them to meet diverse requirements from high‑frequency signal processing to energy storage. This article provides an in‑depth look at the capacitance range of film capacitors and the adaptation methods for different circuits.

1. Analysis of the Capacitance Range of Film Capacitors

The capacitance range of film capacitors typically lies between 1 pF and 100 μF, but specially designed power film capacitors can reach several farads. This wide range originates from the diverse dielectric materials and structural designs:

1. Small‑capacitance segment (1 pF – 10 nF):

Primarily using polystyrene (PS) or polypropylene (PP) dielectrics, these capacitors feature extremely low dissipation factors (DF values can be as low as 0.0001), making them particularly suitable for high‑frequency circuits, resonant circuits, and precision timing applications. For example, the 5 pF tuning capacitors commonly used in RF circuits can achieve temperature stability of ±30 ppm/°C.

2. Medium‑capacitance segment (10 nF – 1 μF):

Mainly metallized polyester (PET) and polypropylene (PP) types, these capacitors strike a balance between size and performance and are widely used in general‑purpose filtering, coupling, and similar applications. Typical X2 safety capacitors fall into this range, with capacitances usually between 100 nF and 1 μF.

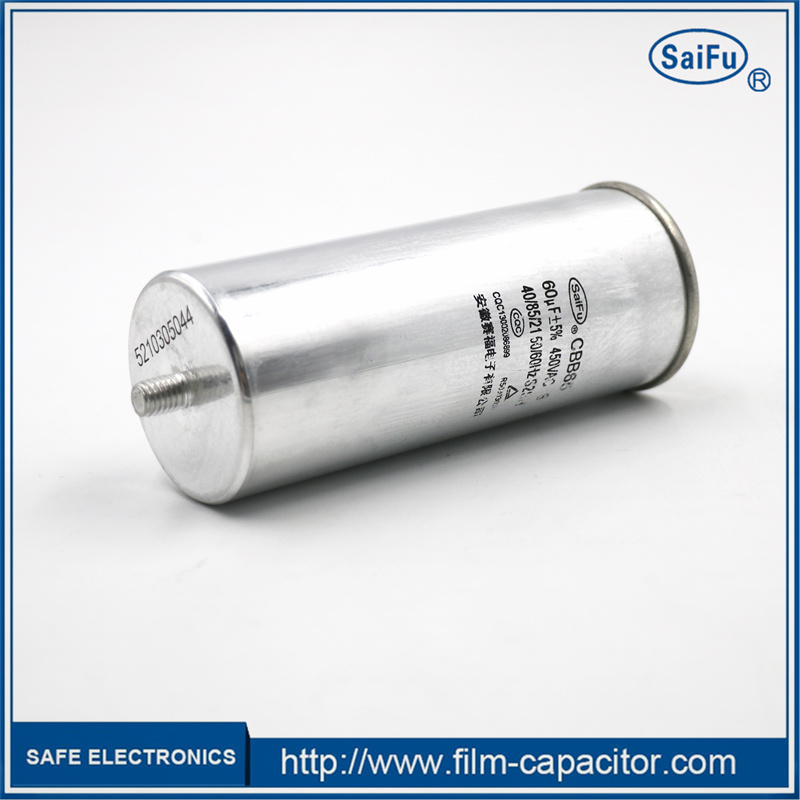

3. Large‑capacitance segment (1 μF – 100 μF):

Using metallized polypropylene (MKP) or specially structured film materials, these capacitors perform outstandingly in renewable‑energy applications. For instance, DC‑link capacitors used in photovoltaic inverters can have capacitances of several tens of microfarads and withstand ripple currents exceeding 20 A.

4. Ultra‑large‑capacitance segment (above 100 μF):

Power film capacitors realized through multi‑winding and stacking techniques, such as the 600 μF film capacitors used in some motor‑drive systems, can have voltage ratings above 1000 VDC.

It is worth noting that the relationship between capacitance and volume is nonlinear. A 10 μF / 250 V CBB capacitor can be 8 to 10 times the volume of a 1 μF / 250 V model of the same series, because higher capacitance requires a larger area of metallized film.

2. Technical Points for Adapting to Different Circuit Requirements

Selecting a film capacitor involves more than just its capacitance value; the matching of circuit characteristics and capacitor performance parameters must be considered comprehensively:

2.1 High‑Frequency Circuit Adaptation

· Prefer polypropylene (PP) or polystyrene (PS) dielectrics.

· Pay attention to the self‑resonant frequency (SRF); typically choose a capacitor whose SRF is at least 30 % higher than the operating frequency.

· Example: In 2.4 GHz WiFi RF front‑ends, 0402‑case 1‑10 pF NP0 film capacitors are recommended.

2.2 Power Electronics Adaptation

· Select metallized polypropylene (MKP) or special zinc‑aluminium composite metallized films.

· Key parameter: dV/dt capability (high‑quality capacitors can achieve >100 V/μs).

· Application case: In IGBT snubber circuits, choose capacitors with a voltage rating at least twice the DC‑bus voltage.

2.3 High‑Temperature Environment Adaptation

· Use polyethylene naphthalate (PEN) or polyphenylene sulfide (PPS) dielectrics.

· Note the capacitance change with temperature: PEN capacitors exhibit approximately 15 % capacitance loss at 125 °C.

· Typical application: Electronics in automotive engine compartments require capacitors rated for ‑55 °C to 150 °C.

2.4 Long‑Life Requirement Adaptation

· Choose metallized films with self‑healing properties.

· Focus on endurance test data: high‑quality capacitors can exceed 1000 hours at 85 °C / 85 % RH.

· Filter capacitors in industrial frequency converters are generally required to have a service life of >100,000 hours.

3. Trade‑offs Between Capacitance Accuracy and Stability

The capacitance tolerance of film capacitors can be divided into three grades:

· Precision grade (±1 %): used in timing circuits and precision filters.

· Standard grade (±5 %): general circuit applications.

· Wide‑tolerance grade (±10 % to ±20 %): non‑critical positions such as power decoupling.

In terms of temperature characteristics:

· PPS capacitors offer the best linearity (±1.5 % over ‑55 °C to +125 °C).

· PET capacitors have a relatively large temperature coefficient (about +600 ppm/°C).

· PP capacitors exhibit a negative temperature coefficient (about ‑200 ppm/°C).

In practical circuit design, the following approaches are often used to meet system requirements for capacitance stability:

1. Parallel combinations to achieve precise capacitance values.

2. Temperature‑compensation circuits.

3. Selecting appropriate dielectric materials.

4. Special Requirements in Emerging Applications

With the growth of renewable energy and electric vehicles, film capacitors face new challenges:

1. On‑board charger (OBC) applications:

· Required capacitance: 4–20 μF per kW.

· Special requirements: AEC‑Q200 qualification, vibration resistance >20 g.

· Solution: potted‑structure box‑type film capacitors.

2. Photovoltaic inverter applications:

· Capacitance sizing: typically designed at a ratio of about 1 μF per watt.

· Key specification: withstand 150 % overvoltage for 1 second.

· Trend: integrated DC‑link modules (capacitor + busbar).

3. Wireless charging systems:

· Resonant capacitor requirement: Q factor >1000 at 100 kHz.

· Typical capacitance: 100 nF to 470 nF.

· Material innovation: use of ultra‑thin (<2 μm) metallized films.

5. Practical Selection Tips

1. Capacitance derating rules:

· For high‑frequency applications: use about 70 % of the nominal capacitance.

· For high‑temperature environments: account for a 20 % capacitance drop at 85 °C.

· For long‑life designs: consider 1–2 % annual capacitance degradation.

2. Failure‑mode prevention:

· Avoid exceeding 80 % of the rated voltage.

· Keep operating temperature within 70 % of the rated maximum.

· For pulse applications, calculate the equivalent RMS voltage.

3. Cost‑performance optimisation:

· Use PET capacitors for general circuits.

· Use PP capacitors in critical positions.

· Consider PPS capacitors for extreme environments.

With ongoing advances in materials science and manufacturing processes, the capacitance ceiling of film capacitors continues to be pushed higher. In recent years, hybrid‑dielectric film capacitors—which combine the advantages of different polymers—have achieved breakthroughs in obtaining higher capacitance in smaller volumes. Going forward, as new‑energy vehicles and renewable energy become more widespread, film capacitors will demonstrate their unique value across an even broader capacitance range, and engineers will need to continually update their knowledge to fully exploit the performance potential of these components.
