A Comparison of Film Capacitors and Ceramic Capacitors

In the world of electronic components, film capacitors and ceramic capacitors are like two distinct "powerhouses," each occupying an important position in circuit design with their unique performance advantages. When engineers face scenarios such as high-frequency filtering, energy storage, or signal coupling, how should they choose? This in-depth comparison of dielectric materials, temperature characteristics, and application scenarios deserves our careful analysis.

Structural Differences: Physical Morphology Determines Performance Genes

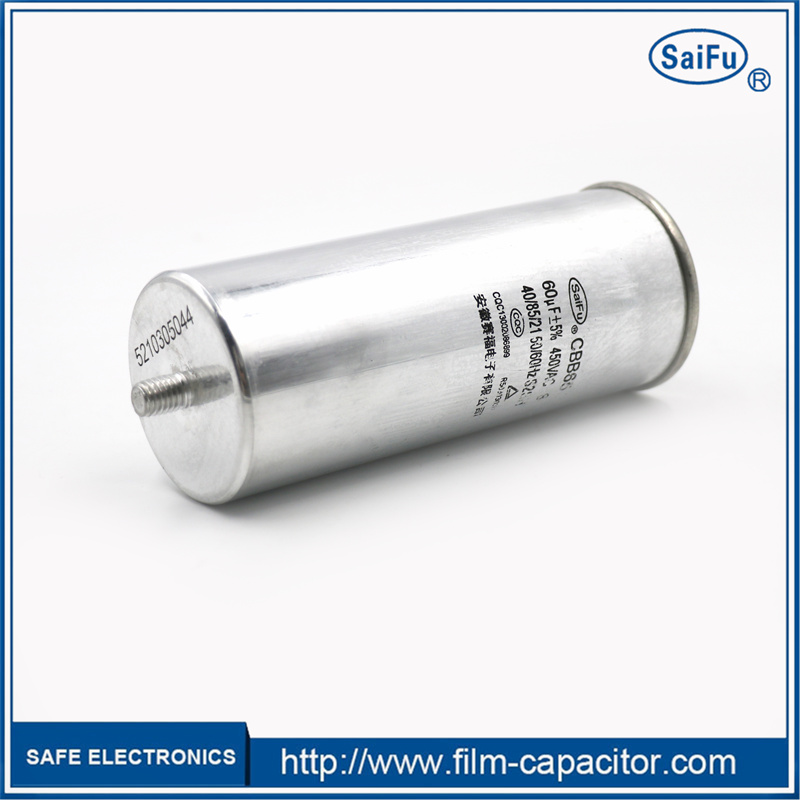

Film capacitors use organic materials such as metallized polyester (PET), polypropylene (PP), or polyphenylene sulfide (PPS) as the dielectric, and deposit nanoscale metal layers as electrodes on the film surface through a vacuum evaporation process. This "sandwich" structure gives them excellent self-healing properties—when a local breakdown occurs, the metal layer around the breakdown point vaporizes to isolate the fault, much like biological tissue with "wound self-healing" capabilities. For example, in the OBC (On-Board Charger) of electric vehicles, polypropylene film capacitors can withstand high-voltage pulses of over 800V and have a lifespan of over 100,000 hours. Ceramic capacitors use ceramic dielectrics such as barium titanate (BaTiO₃) and achieve high capacitance through multilayer stacking technology. Their core advantage lies in their dielectric constant, which can reach several thousand (X7R/X5R type), while the dielectric constant of NPO/C0G type low-temperature drift ceramics is only 30-60, but they have excellent temperature stability. The stack thickness of multilayer ceramic capacitors (MLCCs) has been reduced to below 1μm, and small-volume devices in 0402 packages can achieve a capacitance of 10μF. This "high-density" characteristic is difficult for thin-film capacitors to match.

Key Parameter Showdown: Real-world Comparison Across Six Dimensions

1. Temperature Characteristics: NP0 ceramic capacitors exhibit capacitance variation of less than ±30ppm/℃ within the -55℃ to 125℃ range, making them the king of temperature stability. In contrast, X7R ceramic capacitors experience capacitance fluctuations of ±15% with temperature, while polypropylene film capacitors maintain a stability of ±2.5%. In aerospace-grade wide-temperature applications (-55℃ to 150℃), C0G ceramic and PP film capacitors are often the only two choices.

2. High-Frequency Loss: Film capacitors typically have a loss tangent (tanδ) below 0.001, making them particularly suitable for MHz-level high-frequency applications. For example, in the matching network of a 5G base station PA circuit, polyphenylene sulfide film capacitors still maintain a Q value exceeding 2000 at 3GHz. In contrast, X7R ceramics reach tanδ of 0.02 at 1MHz, resulting in a sharp increase in equivalent series resistance (ESR) at high frequencies.

3. DC Bias Effect: This is the Achilles' heel of ceramic capacitors. When a DC voltage is applied, the capacitance of X5R/X7R type capacitors can decrease by more than 60%. For example, a 100V/10μF X7R capacitor has an actual capacitance of only 4μF under an 80V bias. Film capacitors, on the other hand, are almost unaffected by bias voltage, giving them a significant advantage in DC-Link circuits.

4. Lifespan Prediction: The accelerated aging of ceramic capacitors follows the Arrhenius equation; at 85℃/85%RH, the lifespan is halved for every 10℃ increase. Metallized film capacitors, with their thickened edge design, can still guarantee a lifespan of 100,000 hours at 105℃. Film-type capacitors are often chosen for DC filter capacitors in photovoltaic inverters precisely because of their 20-year maintenance-free characteristic.

5. Instantaneous Overload Capacity: Ceramic dielectrics are brittle and prone to microcracks after repeated high-voltage impacts. Tests show that a 1210 packaged X7R capacitor has a failure rate of 3% after withstanding 100 times of 1000V/μs pulses. Metallized film capacitors can withstand 5000 cycles of the same impact, making them the ideal choice for pulsed power systems such as electromagnetic railguns.

Cost Economics: The unit price of a 10nF X7R ceramic capacitor in a 0402 package has fallen below 0.01 yuan, while the price of a PP film capacitor of the same capacity is 5-8 times higher. However, in high-capacity, high-voltage applications (such as 100μF/450V), film capacitors actually have a cost advantage over ceramic arrays of the same specifications.

The Golden Ratio of Application Scenarios

Automotive Electronics:

- Ceramic capacitors dominate board-level decoupling in ECUs (0.1μF~10μF/50V), their small size suitable for high-density mounting;

- Film capacitors are used in motor driver IGBT snubber circuits (2.2μF~15μF/1200V), their pulse-resistant characteristics protecting power devices. RF Circuit Design:

- NPO ceramic capacitors are the first choice for VCO tuning circuits, their ±5ppm/℃ temperature drift ensuring frequency stability;

- PTFE film capacitors, due to their extremely low dielectric loss (tanδ<0.0003), have become core components of millimeter-wave filters.

New Energy Power Generation Systems:

- The MPPT input of photovoltaic inverters commonly uses 600VDC metallized polypropylene capacitor banks, whose lifespan at 85℃ is more than three times that of electrolytic capacitors;

- Ceramic capacitor arrays are used in the PLC communication modules of string inverters to achieve EMI filtering and signal isolation.

四、Future Technology Evolution Roadmap

Film capacitors are trending towards ultra-thin designs. Japanese manufacturers have already mass-produced 2μm thick double-sided metallized polypropylene films, reducing axial capacitor volume by 40%. With the trend towards 800V platforms in electric vehicles, new alumina-doped PP films can raise the operating temperature to 125℃. Ceramic capacitors are overcoming dielectric bottlenecks through "nanograin boundary engineering," with TDK's X8R material controlling capacitance decay within ±15% at 150℃. 3D printing technology for creating three-dimensional cross-electrode structures is expected to further improve the volumetric efficiency of MLCCs by 30%.

In the field of smart wearable devices, the combination of flexible film capacitors and fabric electrodes has begun to emerge. Furthermore, ceramic-polymer composite materials based on lead zirconate titanate (PZT) may become the next-generation energy storage medium, combining high dielectric constant and flexibility.

There is no absolute superiority or inferiority in choice, only suitability for the scenario. When designing RF circuits, the stability of NPO ceramics is irreplaceable; while when dealing with kilovolt-level pulses, the reliability of film capacitors is the last line of defense. Understanding the "personality traits" of these two types of capacitors is crucial to allowing them to perform at their best in circuit design. Next time you pick up a component, consider asking yourself: does this location require a stable "rock" or a flexible "hunter"?
