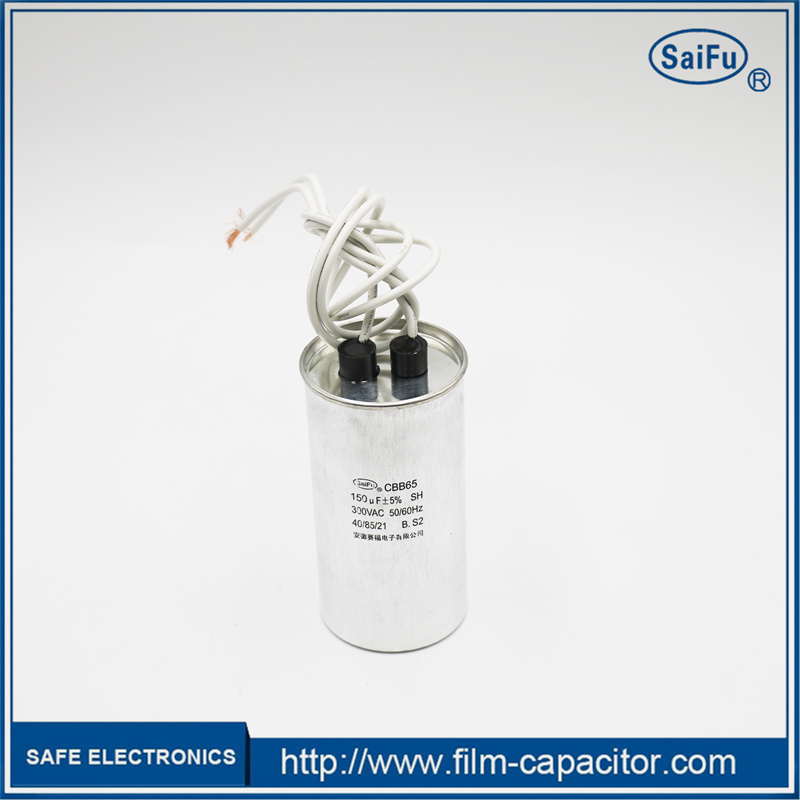

1. First, inspect the exterior; if there are visible defects, the film capacitor is likely faulty.
2. Use a multimeter set to the resistance range to test the capacitor's terminals; the reading should indicate very high resistance. If a capacitance meter is available, measure the capacitance value to verify that it matches the rating marked on the casing.
3. Test performance at room temperature, including capacitance, dissipation factor, insulation resistance, withstand voltage, ESR, etc. Focus testing on the specific performance characteristics most critical to the application.
4. Conduct simulated life testing. Even if performance is satisfactory under standard room-temperature conditions, it is necessary to verify the component's long-term durability.
5. Select a reputable capacitor manufacturer.
6. Film capacitors are constructed by using metal foil as electrodes and winding them—together with plastic films such as polyester, polypropylene, polystyrene, or polycarbonate—into a cylindrical shape. Depending on the type of plastic film used, they are classified as polyester, polypropylene, polystyrene, or polycarbonate capacitors.
When using capacitors, it is essential to master the methods for measuring them, as this is the key to determining their condition. So, what methods are available for measuring film capacitors?
First, a multimeter can be used to test a capacitor by setting it to the resistance range. In practice, a digital multimeter allows for the observation of the capacitor's charging process; this essentially reflects changes in charging voltage through discrete digital values. If the digital multimeter has a sampling rate of n readings per second, then during the observation of the charging process, one will see n independent, sequentially increasing readings each second.
Next, we introduce a method for testing capacitors using the resistance setting of a digital multimeter; this is particularly useful for meters that lack a dedicated capacitance range. This method is suitable for measuring large-capacity capacitors ranging from 0.1 μF to several thousand microfarads. Set the digital multimeter to an appropriate resistance range and touch the red and black test leads to the two terminals of the capacitor under test (Cx); the displayed value will gradually increase from "000" until the overflow symbol "1" appears. If the display remains at "000," the capacitor has an internal short circuit; if it consistently shows an overflow, there may be an internal open circuit between the plates, or the selected resistance range may be unsuitable. When testing electrolytic capacitors, ensure the red lead (positive polarity) is connected to the positive terminal and the black lead to the negative terminal.
