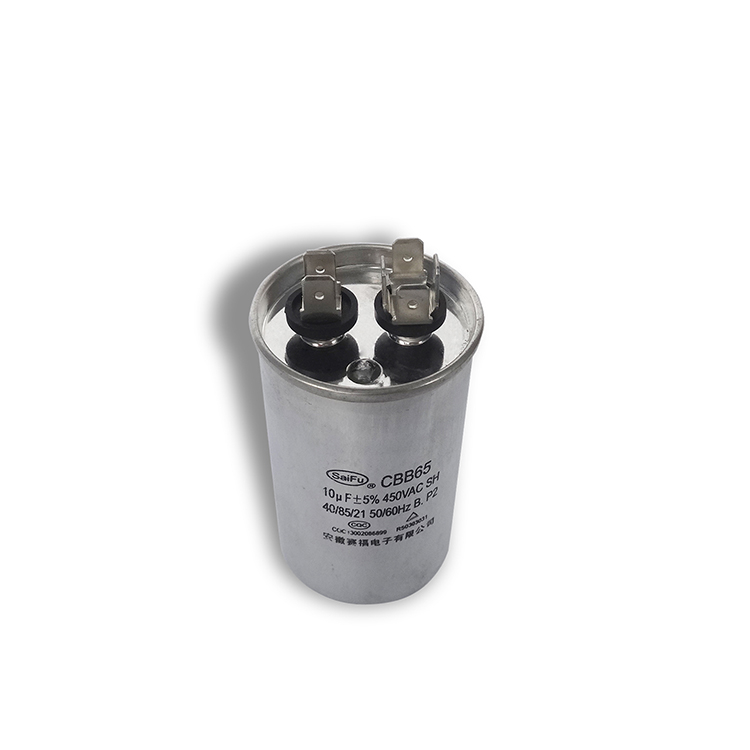

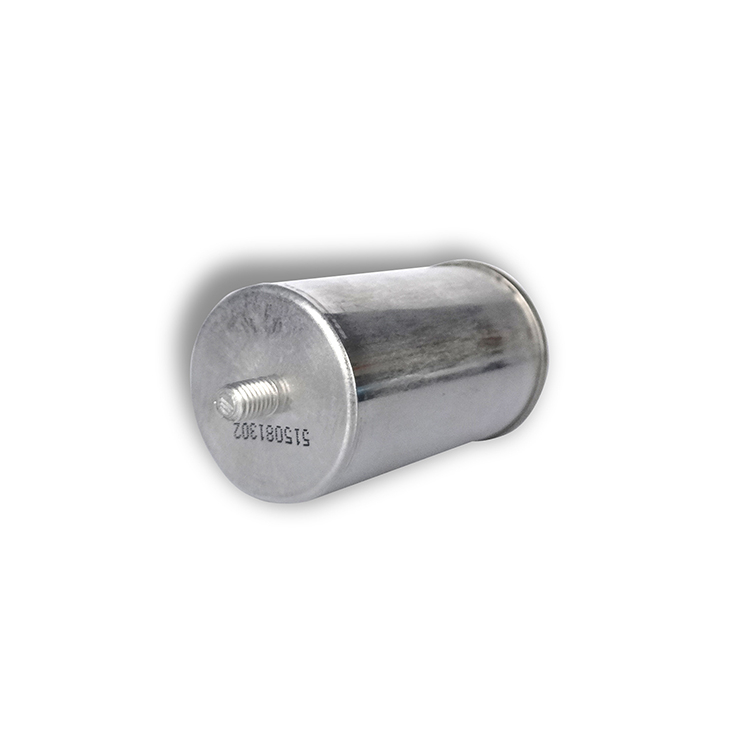

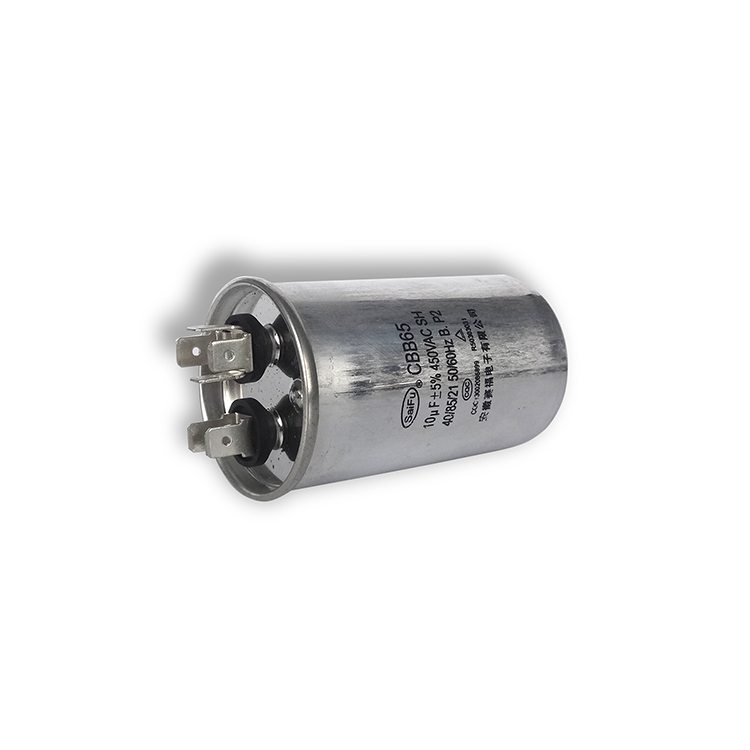

CBB65(ac capacitor)-450VAC-10uF

Model No: CBB65 Capacitor
Type: Polypropylene Capacitor
Capacitance: 2~120uF
Capacitance Tolerance: ±5%
Rated Voltage: 200~500VAC
Structure: Single Capacitor
Manufacturing Material: Polypropylene
Electrolyte: Polypropylene Film
Operating Temperature: 40/70/21 or 40/85/21
Class of Safety Protection: P1/P2
Class of Operation: Class B,Class C
Package Type: Export Carton for CBB65 Capacitor
Production Capacity: 500,000pcs/Month
MOQ: 1pcs
Size: Available on Request (Customized Capacitor)
  • Wire

  • <= 10uf

  • 250VAC

  • CBB65

Availability:
Quantity:

***Product Description***

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 capacitor are

tightly winded by high-velocity winders and canned in aluminum cases.The second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.

cbb65



***Technical Specifications***

Reference standards

 GB/T3667.1(IEC60252-1) EN60252-1

Climatic category

 40/70/21,40/85/21

Class of operation

 Class B(10000h)  Class C(3000h)

Class of safety protection

 S2/S1(P2/P1)

Voltage range

 200~500VAC

Capacitance range

 2~120μF

Capacitance tolerance

 ±5%(J) ±10%(K)

Dissipation factor

 20×10-4(100Hz,20℃)

Test voltage terminal to terminal UTT

 2 Un for 2 seconds

Test voltage terminal to case UTC

 (2Un+1000)VAC or 2000VAC-50Hz for 60

 seconds

Insulation Resistance

 ≥3000MΩ. μF(100Hz,20℃,1min)

***Application***

CBB65 capacitor can be broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.




***Appearance & Application***

Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.

Installation Type: Through Hole

Shape: Cylinder or Ellipse

Capacitor Case: Aluminum Case

***Packing&Delivery***

Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo




***Dimensions(mm)***

No

Specifications

Terminal

Size

1

CBB65—450VAC 2μF ~9μF

2×4 or 2×2 pin

Φ40×60

2

CBB65—450VAC10μF

2×4 or 2×2 pin

Φ40×60

3

CBB65—450VAC12.5μF

2×4 or 2×2 pin

Φ40×70

4

CBB65—450VAC15μF

2×4 or 2×2 pin

Φ45×70

5

CBB65—450VAC—20μF

2×4 or 2×2 pin

Φ45×75

6

CBB65—450VAC—25μF

2×4 or 2×2 pin

Φ50×85

7

CBB65—450VAC—30μF

2×4 or 2×2 pin

Φ50×100

8

CBB65—450VAC—35μF

2×4 or 2×2 pin

Φ50×100

9

CBB65—450VAC—40μF

2×4 or 2×2 pin

Φ50×100

10

CBB65—450VAC—45μF

2×4 or 2×2 pin

Φ50×100

11

CBB65—450VAC—50μF

2×4 or 2×2 pin

Φ50×125

12

CBB65—450VAC—55μF

2×4 or 2×2 pin

Φ50×125

13

CBB65—450VAC—60μF

2×4 or 2×2 pin

Φ50×125

14

CBB65—450VAC—65μF

2×4 or 2×2 pin

Φ55×125

15

CBB65—450VAC—70μF

2×4 or 2×2 pin

Φ55×125

16

CBB65—450VAC—80μF

2×4 or 2×2 pin

Φ60×125

17

CBB65—450VAC—90μF

2×4 or 2×2 pin

Φ60×125

18

CBB65—450VAC—100μF

2×4 or 2×2 pin

Φ63.5×125

* Note

1.Other capacitance and dimension serials can be specified in compliance with customer's request.

2.Terminal forms can be made in conformity to the requirements of agreements with customers.

***Our advantages***

*LeadingTechnology:

Have a number of invention patents

*Stable Quality:

The company has the world's most advanced production equipment, and implement ISO9001 standard management.

*Reasonable Price:

Executive "Industrial products 10% Profit in the first"

*Cordial Service:

7*24 hours online, prompt reply and timely delivery

***Welcome to Contact Us***

Tel: 0086-0562-2821018

Fax: 0086-0562-2821558

Mobile Phone: 0086-562-13305620368 (Helen Hu)



All the price are negotiable upon specifications, if you have any inquiry, welcome to contact us.
