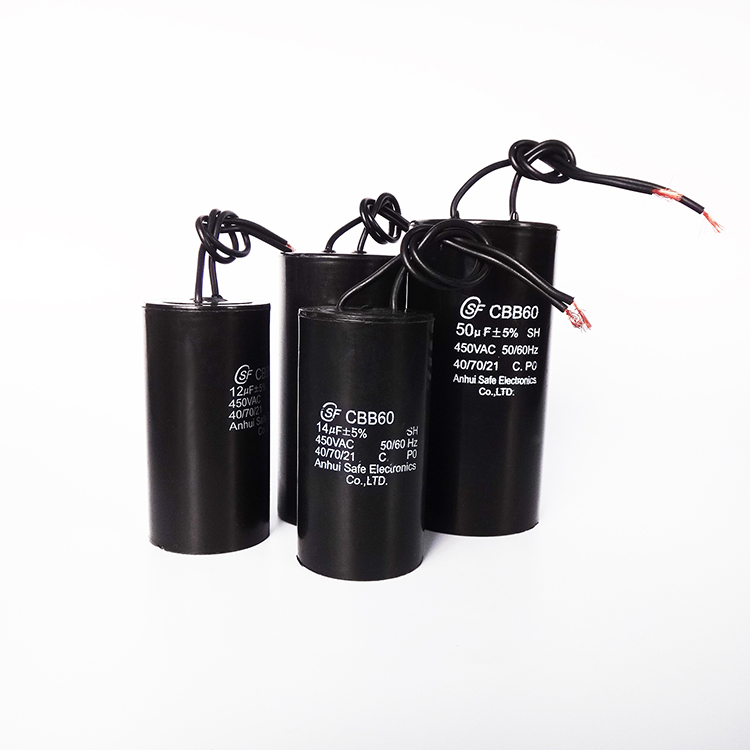

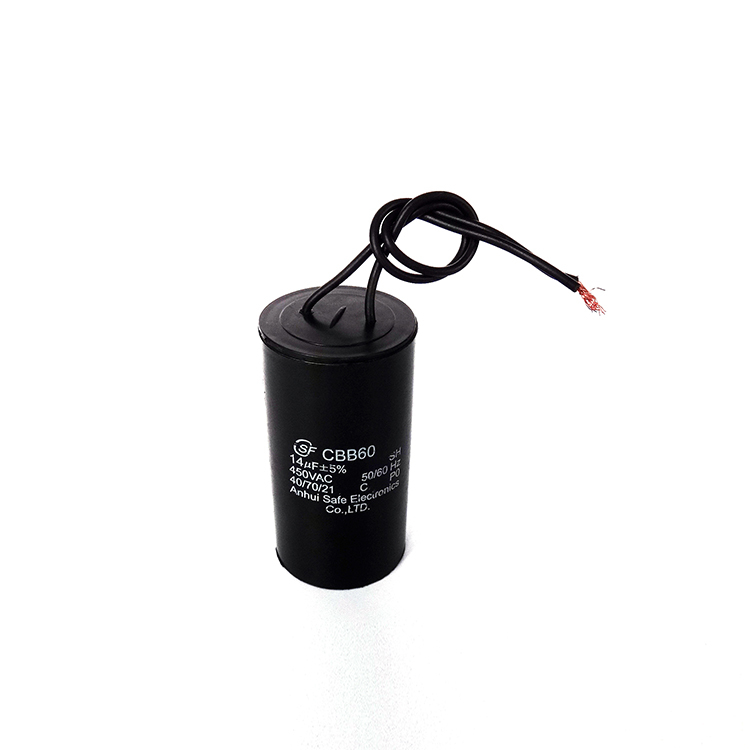

CBB60(ac capacitor)-450VAC-14uf

Reference standards: GB/T 3667.1 ( IEC60252-1 )
Climatic category: 40/70/21,40/85/21
Class of operation: Class B(10000h) Class C(3000h)
Class of safety protection: P0/P2
Voltage range: 200~500VAC
Capacitance range: 1~35μF
Capacitance tolerance: ±5%
Dissipation factor: 20×10-4(100Hz,20℃)
Test voltage terminal to terminal UTT: 2 Un for 2 seconds
Test voltage terminal to case UTC: (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance: ≥3000MΩ. μF(100Hz,20℃,1min)
  • Wire

  • 10 ~ 50uf

  • 450VAC

  • CBB60

Availability:
Quantity:

Description of Product:

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size,reliable performance and long endurance.

Technical Specifications:

Reference   standards

GB/T 3667.1 ( IEC60252-1 ) EN60252-1

Climatic   category

40/70/21,40/85/21

Class   of operation

Class   B(10000h)  Class C(3000h)

Class   of safety protection

P0/P2

Voltage   range

200~500VAC

Capacitance   range

1~35μF

Capacitance   tolerance

±5%(J) ±10%(K)

Dissipation   factor

20×10-4(100Hz,20)

Test   voltage terminal to terminal UTT

2 Un   for 2 seconds

Test   voltage terminal to case UTC

(2Un+1000)VAC   or 2000VAC-50Hz for 60 seconds

Insulation Resistance

3000MΩ.   μF(100Hz,20,1min)

Dimensions(mm):

Specifications

450VAC

250VAC

1μF

37×13×23

37×13×23

1.2μF

37×13×23

37×13×23

1.5μF

37×14×25

37×13×23

2μF

37×16×28

37×13×23

2.5μF

37×18×28

37×14×25

3μF

47×18×29

37×14×25

3.5μF

47×18×34

37×16×28

4μF

47×18×34

37×16×28

4.5μF

47×22×34

37×16×28

5μF

47×22×34

37×18×28

5.5μF

47×22×34

37×18×28

6μF

47×22×34

47×18×29

6.5μF

48×26×38

47×18×29

7μF

48×26×38

47×18×29

8μF

48×26×38

47×18×34

10μF

58×26×44

47×22×34

12μF

58×26×44

47×22×34

15μF

58×26×44

47×22×34

16μF

58×26×44

47×26×38

20μF

58×35×49

47×26×38

25μF

58×35×49

47×26×38

30μF

Negotiable

58×26×44

35μF

Negotiable

58×26×44

NoteOther specifications,size and terminal outside table are negotiable.



Applications:

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners’ fans,electric fans and exhaust fans etc.at comparatively low rated power.

FAQ:

Q1:Are you a manufacturer or a trading company?

A1:We are a manufacturer specialized in metallized film for capacitor use and metallized film capacitors since 2007.We enjoy great reputation among our customers not only for competitive price,qualified products but also for excellent service.

Q2:How is your product quality?

A2:We use the famous brand material film to make every product.Our products get the certification of the ISO9001/CQC/TUV/UL/VDE/SGS.

Q3:What’s the storage conditions of your product?

A3:Capacitor must not be stored in corrosive air environment,in particular hydrides,sulphides,acids,alkalis,salts,organic solvents,or similar material.The product should not be exposed to high temperature and high humidity condition.
