 |
Wire
<= 10uf
250VAC
Al/Zn Metallized Film
| Quantity: | |
|---|---|
Description of Product
l Type:
Al/Zn Metallized film
Al Metallized film
segmented Anti-explosion Film
l Application:
Applied to capacitors for power system, refrigerators and air conditioners
Construction

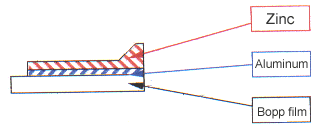

l Aluminum/Zinc film with reinforced edge:
l Specifications of Metallized film:
Ø Cores：
Material：Plastic
Width：Film Slit Width±0.3mm
Inner Diameter：75mm +1.0mm/-0.5mm
Ø Roll Outer Diameter：
Slit Widths | Recommend Outer Diameter |
4.5mm≤W＜10mm | 140mm≤D≤185mm |
10mm≤W＜25mm | 150mm≤D≤185mm |
25mm≤W＜50mm | 150mm≤D≤240mm |
50mm≤W | 150mm≤D≤350mm |
Ø Specifications of MPP Film：
Properties | Unit | Requirements | |
Density | g/cm3 | 0.905±0.005 | |
Thickness | µm | 3.8～15 | |
Tensile Strength | MD(MPa) | ≥100 | |
Elongation at Break | MD(%) | 40～200 | |
Heat Shrinkage | MD(%) | ≤5 ( 120℃, 10min)( 120℃ , 10 min ) | |
Break-dowm Voltage | V/µm | ≥350 ( 23℃, DC ) | |
Coating Square Resistance | Ω/□ | With heavy-edge | Heavy-edge area:3±1 Non heavy-edge area:7.5±2.5 |
Without heavy-edge | 2～4 | ||
Dissipation Factor | － | ≤4×10-4 (20℃，1KHz ) | |
RC | ΩF | ≥5×104 | |
Ø Specifications of MPET Film：
Properties | Unit | Requirements | |||||||
Density | g/cm3 | 1.34 | |||||||
Thickness | µm | ＜5 | 5～12 | ＞12 | |||||
Tensile Strength | MD(MPa) | ≥84 | ≥108 | ≥120 | |||||
Elongation at Break | MD(%) | ≥22 | ≥33 | ≥44 | |||||
Heat Shrinkage | MD(%) | ≤3 ( 120℃ , 10 min ) | |||||||
Break-dowm Voltage | V/µm | ≥200 ( 23℃, DC ) | ≥250 ( 23℃, DC ) | ||||||
Coating Square Resistance | Ω/□ | Al | 1.5±0.5 | 2.0±0.5 | 2.5±0.5 | 3±1 | |||
Zn/Al | (6～7.5)±30% | ||||||||
Dissipation Factor | － | ≤60×10-4 (20℃，1KHz ) | |||||||
RC | ΩF | ≥1×104 | |||||||
Packing：
l Roll films are packed in vacuum plastic bag
l Bags are marked with lables of types
l The bags are packed in carton cases
l The cartons are wrapped in wooden cases or reinforced carton
Storge：
l Metallized film should be stored in its original package and be used with temperature 5～35℃ and humidity less than 85%RH.
l Metallized layer is easily oxidized when exposed to moisture. Therefore, the film should be used as soon as possible when opened.
l The recommended temperature is 15 -25℃with humidity less than 60%RH after the package is open.
l With original sealed package, and stored in the above mentioned conditions, the storage time can be as following:
Ø Al metalized Film: 12 months from the delivered date.
Ø Al/Zn Alloy metalized Film: As Zn is relatively unstable, preservation period depends on the resistance of the film：
ü Less than 10 Ohms: 6 months (from delivery date)
ü 10 Ohms to 15 Ohms: 3 months (from delivery date)
ü 15 Ohms: 1month (from delivery date)
FAQ:
Q1:Are you a manufacturer or a trading company?
A1:We are a manufacturer specialized in metallized film for capacitor use and metallized film capacitors since 2007.We enjoy great reputation among our customers not only for competitive price,qualified products but also for excellent service.
Q2:How is your product quality?
A2:We use the famous brand material film to make every product.Our products get the certification of the ISO9001/CQC/TUV/UL/VDE/SGS.
Q3:What’s the storage conditions of your product?
A3:Capacitor must not be stored in the environment like corrosive air , particular hydrides, sulphides,acids, alkalis,organic, solvents or similar material.
Contact Us:
l Fax: (+86)562-2821558
