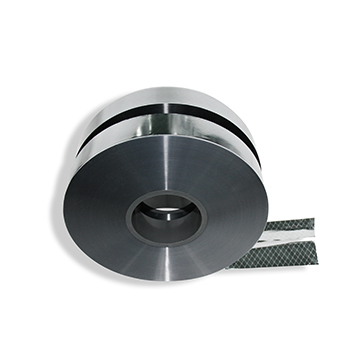

MPPZn/AlFH Safety explosion-proof metallized film

The metal plate of anti-explosion pattern metallized film is divided into a number of small units, these units are connected with fuses. When the non-self-healing breakdown occurs, the fuse is burn-out, the breakdown area is cut off and isolated. Since the capacitor unit consists of many small units, thus the isolated small unit has little influence on the capacitance of the capacitors.
Safety explosion-proof metallized film is divided into grid type and "T" type safety.
  • Wire

  • <= 10uf

  • 250VAC

  • Al Metallized Film

Availability:
Quantity:

1、Features:
     Under the same evaporation conditions, the larger the coating thicknessδ, the smaller square resistance (Ω/□) , the smaller the resistance R, the greater the load current, while the worse self healing properties.

Al metallized film has a better over-current performance.

Al metallized film has a better moisture resistance.


2、Types of Metallized Layer:

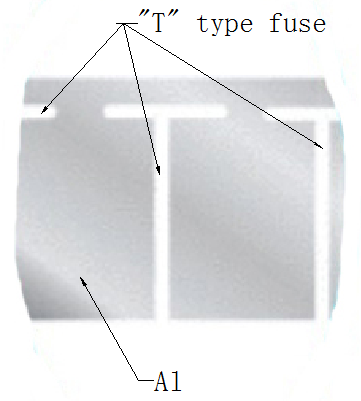

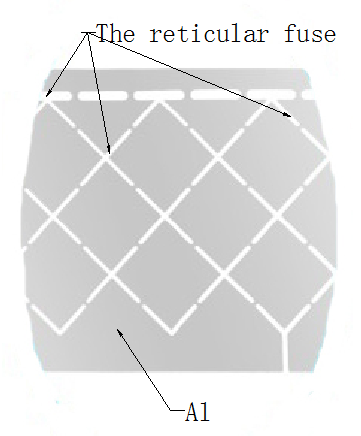

         网状安全铝膜2“T”安全铝2
Margin size(mm):1.0±0.5、1.5±0.5、2.0±0.5、2.5±0.5、3.0±0.5、4.0±0.5、5.0±0.5
Coating square resistance(Ω/□):1.5±0.5、2.0±0.5、2.5±0.5、3.0±1


3、Cores:

  1. Material:Plastic
  2. Width:Film Slit Width±0.3mm
  3. Inner Diameter:75mm +1.0mm/-0.5mm

4、 Roll Outer Diameter:

roll outer diameter


   5、Specifications of MPPZn/AlH metallized film:
性能
Properties
单位
Unit
要求
Requirements
密度Density g/cm3 0.905±0.005
厚度 Thickness µm 3.8 ~ 15
抗拉强度
Tensile Strength
纵向MD
(MPa)
≥100
断裂伸长率
Elongation at Break
纵向MD
(%)
40 ~ 200
热收缩率
Heat Shrinkage
纵向MD
(%)
≤5 ( 120°C, 10min)
( 120°C , 10 min )
介电强度
Break-dowm voltage
V/µm ≥350 ( 23°C, DC )
介电损耗因数
Dissipation Factor
- ≤4×10-4 (20℃,1KHz )
RC值 ΩF ≥5×104


     6、Packing:

  1. Roll films are packed in vacuum plastic bag
  2. Bags are marked with lables of types
  3. The bags are packed in carton cases
  4. The cartons are wrapped in wooden cases or reinforced carton

7、 Storge:

1、Metallized film should be stored in its original package until its use with temperature 5 ~35℃and humidity less than 85%RH.

2、Metallized layer is easily oxidized when exposure to moisture. Therefore, the film should be used as soon as possible when opened.

3、The recommended temperature is 15 -25℃with humidity less than 60%RH after the package is open.

4、With original sealed package, and stored in the above mentioned conditions, the storage time can be as following:

Al metalized Film: 12 months from the delivered date

Al/Zn Alloy metalized Film: As Zn is relatively unstable, preservation period depends on the resistance of the film:

Less than 10 Ohms: 6 months (from delivery date)

10 Ohms to 15 Ohms: 3 months (from delivery date)

15 Ohms: 1months (from delivery date)
