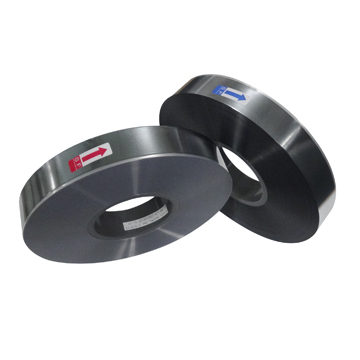

MPPZn/AlH Slope Metallized Film

Coating a thin Al/Zn layer on the surface of plastic film, will get high self-healing Al/Zn metallized film for capacitor use.
The prominent feature of metallized film is its self healing ability. That is, when somewhere is breakdown, short-circuit current can make the film around the breakdown area melting and evaporation to recover its insulation property. Thus significantly reduce the impact on the breakdown strength by conductive defects and weakness in paper or film, thereby improving the working field.
Generally the thickness of the metal layer is 5nm-50nm, but on the international it can be 1nm-100nm. In terms of heat resistance, 1nm-100um is preferred, when taking electric properties into consideration of electric properties, 5nm-50nm is more preferred.

  • Wire
  • <= 10uf
  • 250VAC
  • Al/Zn Metallized Film
Quantity:

Description of Product

Type:

Al/Zn Metallized film

Al Metallized film

segmented Anti-explosion Film

Application:

Applied to capacitors for power system, refrigerators and air conditioners

Construction

Aluminum/Zinc film with reinforced edge:

Metallized Film1



Specifications of Metallized film:

Ø Cores

MaterialPlastic

WidthFilm Slit Width±0.3mm

Inner Diameter75mm +1.0mm/-0.5mm

Ø Roll Outer Diameter

Slit Widths

Recommend Outer Diameter

4.5mm≤W10mm

140mm≤D≤185mm

10mm≤W25mm

150mm≤D≤185mm

25mm≤W50mm

150mm≤D≤240mm

50mm≤W

150mm≤D≤350mm

Ø Specifications of MPP Film

Properties

Unit

Requirements

Density

g/cm3

0.905±0.005

Thickness

µm

3.815

Tensile Strength

MD(MPa)

≥100

Elongation at Break

MD(%)

40200

Heat Shrinkage

MD(%)

≤5 ( 120℃, 10min)( 120℃ , 10 min )

Break-dowm Voltage

V/µm

≥350 ( 23℃, DC )

Coating Square Resistance

Ω/□

With heavy-edge

Heavy-edge area:3±1

Non heavy-edge area:7.5±2.5

Without heavy-edge

2~4

Dissipation Factor

≤4×10-4 (20℃1KHz )

RC

ΩF

≥5×104

Ø Specifications of MPET Film

Properties

Unit

Requirements

Density

g/cm3

1.34

Thickness

µm

5

5~12

12

Tensile Strength

MD(MPa)

84

108

120

Elongation at Break

MD(%)

22

33

44

Heat Shrinkage

MD(%)

( 120℃ , 10 min )

Break-dowm Voltage

V/µm

200 ( 23℃, DC )

250 ( 23℃, DC )

Coating Square Resistance

Ω/□

Al

1.5±0.5

2.0±0.5

2.5±0.5

1

Zn/Al

(6~7.5)±30%

Dissipation Factor

60×10-4 (20℃1KHz )

RC

ΩF

1×104



Packing

Roll films are packed in vacuum plastic bag

Bags are marked with lables of types

The bags are packed in carton cases

The cartons are wrapped in wooden cases or reinforced carton

 Storge

Metallized film should be stored in its original package and be used with temperature 535℃ and humidity less than 85%RH.

l Metallized layer is easily oxidized when exposed to moisture. Therefore, the film should be used as soon as possible when opened.

The recommended temperature is 15 -25℃with humidity less than 60%RH after the package is open.

With original sealed package, and stored in the above mentioned conditions, the storage time can be as following:

Ø Al metalized Film: 12 months from the delivered date.

Ø Al/Zn Alloy metalized Film: As Zn is relatively unstable, preservation period depends on the resistance of the film

ü Less than 10 Ohms: 6 months (from delivery date)

ü 10 Ohms to 15 Ohms: 3 months (from delivery date)

ü 15 Ohms: 1month (from delivery date)

FAQ:

Q1:Are you a manufacturer or a trading company?

A1:We are a manufacturer specialized in metallized film for capacitor use and metallized film capacitors since 2007.We enjoy great reputation among our customers not only for competitive price,qualified products but also for excellent service.

Q2:How is your product quality?

A2:We use the famous brand material film to make every product.Our products get the certification of the ISO9001/CQC/TUV/UL/VDE/SGS.

Q3:Whats the storage conditions of your product?

A3:Capacitor must not be stored in the environment like corrosive air , particular hydrides, sulphides,acids, alkalis,organic, solvents or similar material.
