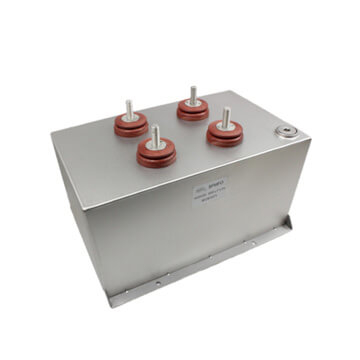

Pulse Capacitor

Reference Standard: IEC61071 IEC61881
Operation Temperature: ﹣40℃ to +70℃
Storage Temperature: ﹣40℃ to +85℃
Hotsport: +70℃ +85℃
Capacitance Tolerance: ±5% or ±10%
Test Voltage Terminal to Terminal UTT: (1.3~1.5) Un for 10 seconds
Test Voltage Terminal to Case UTC: (2Un+1000)VAC-50Hz for 60 seconds
Permissible Relative Humidity: 75% annual average ≤ on 30 days/year
Case Components: Aluminium plastic 304stainless steel
Life Expectancy: ≥100,000 hours at Un
Failure Rate: 50 FIT

  • Wire
  • Pulse Capacitor
  • >= 10uf
  • >=250VDC
Quantity:

Description of Product:

The capacitor for power electronic are use fo metal-based thin-film without a sense of style winding, special spray gold process, molded case or Myra tape packaing, fir

e-retardant exposy resin seal, copper bolts, copper nuts or inserts leads.

Features:Stability of high frequency characteristics of a good - strong – over current characteristics of a small inductor.

Performance:

 Reference Standard

 IEC61071  IEC61881

 Operation Temperature

 40℃ to +70℃

 Storage Temperature

 40℃ to +85℃

 Hotsport

 +70℃    +85℃

 Capacitance Tolerance

 ±5 or ±10

 Test Voltage Terminal to Terminal UTT

 (1.31.5) Un for 10 seconds

 Test Voltage Terminal to Case UTC

 (2Un+1000)VAC-50Hz for 60 seconds

 Permissible Relative Humidity

 75 annual average ≤ on 30 days/year

 Case Components

 Aluminium    plastic  304stainless steel

 Life Expectancy

 ≥100.000 hours at Un

Failure Rate

 50 FIT

Application:

It is mainly used for IGBT, Photovoltaic,UPS,Inverter, Electroplating power supply,Inverter welder, Inverter and induction heating equipment,Solar, Welding, Magnetizater, Filter, Pulse, Inverter, Filter and other Electric and Electronic equipment used for filtering.

FAQ:

Q1:Are you a manufacturer or a trading company?

A1:We are a manufacturer specialized in metallized film for capacitor use and metallized film capacitors since 2007.We enjoy great reputation among our customers not only for competitive price,qualified products but also for excellent service.

Q2:How is your product quality?

A2:We use the famous brand material film to make every product.Our products get the certification of the ISO9001/CQC/TUV/UL/VDE/SGS.

Q3:What’s the storage conditions of your product?

A3:Capacitor must not be stored in corrosive air environment,in particular hydrides,sulphides,acids,alkalis,salts,organic solvents,or similar material.The product should not be exposed to high temperature and high humidity condition.
