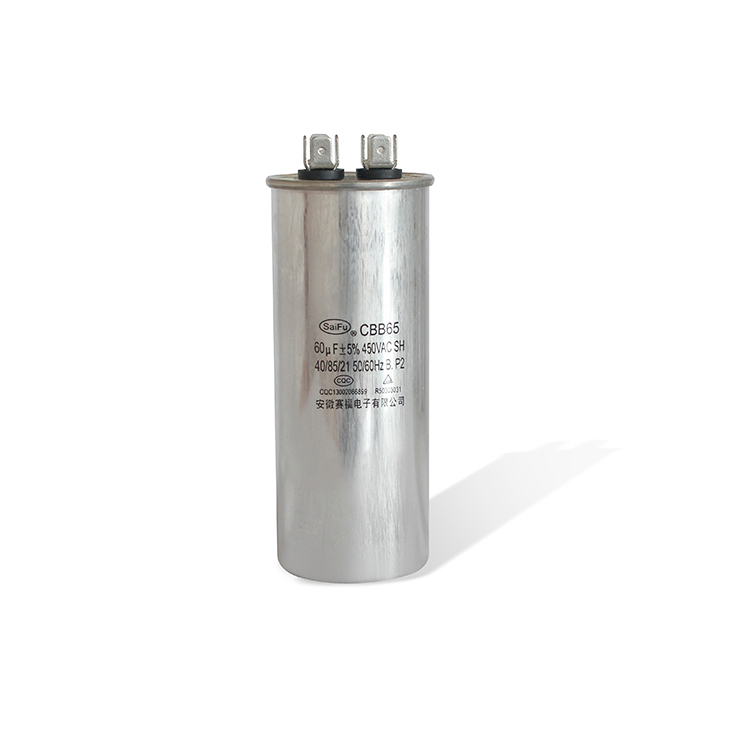

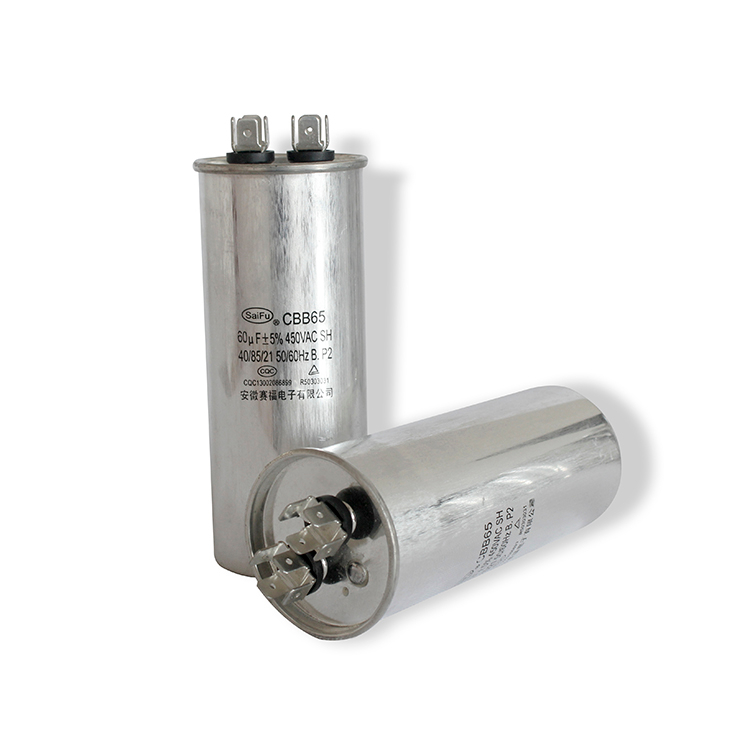

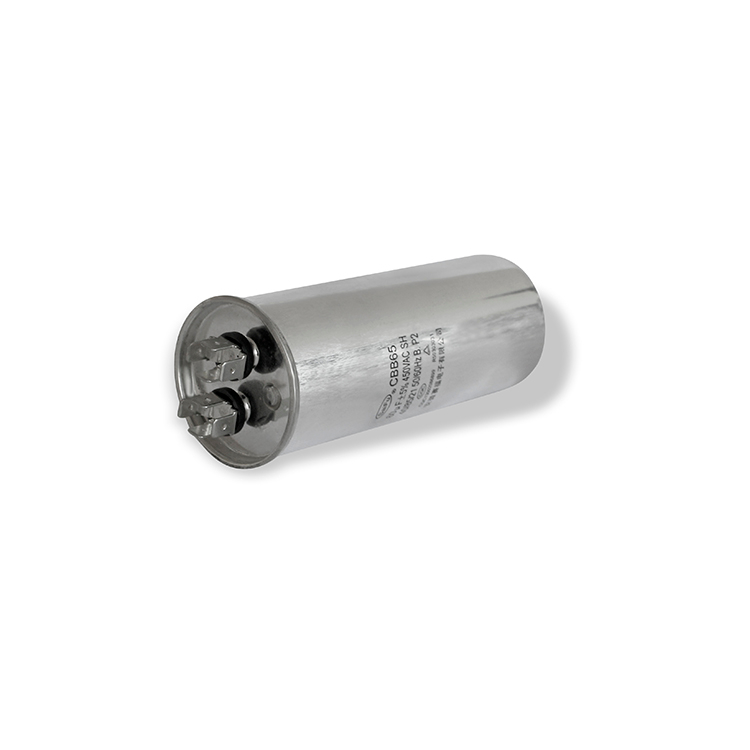

CBB65 capacitor 450VAC 60uf,run capacitor,ac motor capacitor

Product Description

***Product Description***

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 capacitor are

tightly winded by high-velocity winders and canned in aluminum cases.The second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.

cbb65

***Technical Specifications***

Reference standards	GB/T3667.1(IEC60252-1) EN60252-1
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety protection	S2/S1(P2/P1)
Voltage range	200~500VAC
Capacitance range	2~120μF
Capacitance tolerance	±5%(J) ±10%(K)
Dissipation factor	20×10^-4(100Hz,20℃)
Test voltage terminal to terminal U_TT	2 Un for 2 seconds
Test voltage terminal to case U_TC	(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ. μF(100Hz,20℃,1min)

***Application***

CBB65 capacitor can be broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

***Appearance & Application***

Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.

Installation Type: Through Hole

Shape: Cylinder or Ellipse

Capacitor Case: Aluminum Case

***Packing&Delivery***

Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo

***Dimensions(mm)***

No	Specifications	Terminal	Size
1	CBB65—450VAC 2μF ~9μF	2×4 or 2×2 pin	Φ40×60
2	CBB65—450VAC－10μF	2×4 or 2×2 pin	Φ40×60
3	CBB65—450VAC－12.5μF	2×4 or 2×2 pin	Φ40×70
4	CBB65—450VAC－15μF	2×4 or 2×2 pin	Φ45×70
5	CBB65—450VAC—20μF	2×4 or 2×2 pin	Φ45×75
6	CBB65—450VAC—25μF	2×4 or 2×2 pin	Φ50×85
7	CBB65—450VAC—30μF	2×4 or 2×2 pin	Φ50×100
8	CBB65—450VAC—35μF	2×4 or 2×2 pin	Φ50×100
9	CBB65—450VAC—40μF	2×4 or 2×2 pin	Φ50×100
10	CBB65—450VAC—45μF	2×4 or 2×2 pin	Φ50×100
11	CBB65—450VAC—50μF	2×4 or 2×2 pin	Φ50×125
12	CBB65—450VAC—55μF	2×4 or 2×2 pin	Φ50×125
13	CBB65—450VAC—60μF	2×4 or 2×2 pin	Φ50×125
14	CBB65—450VAC—65μF	2×4 or 2×2 pin	Φ55×125
15	CBB65—450VAC—70μF	2×4 or 2×2 pin	Φ55×125
16	CBB65—450VAC—80μF	2×4 or 2×2 pin	Φ60×125
17	CBB65—450VAC—90μF	2×4 or 2×2 pin	Φ60×125
18	CBB65—450VAC—100μF	2×4 or 2×2 pin	Φ63.5×125
