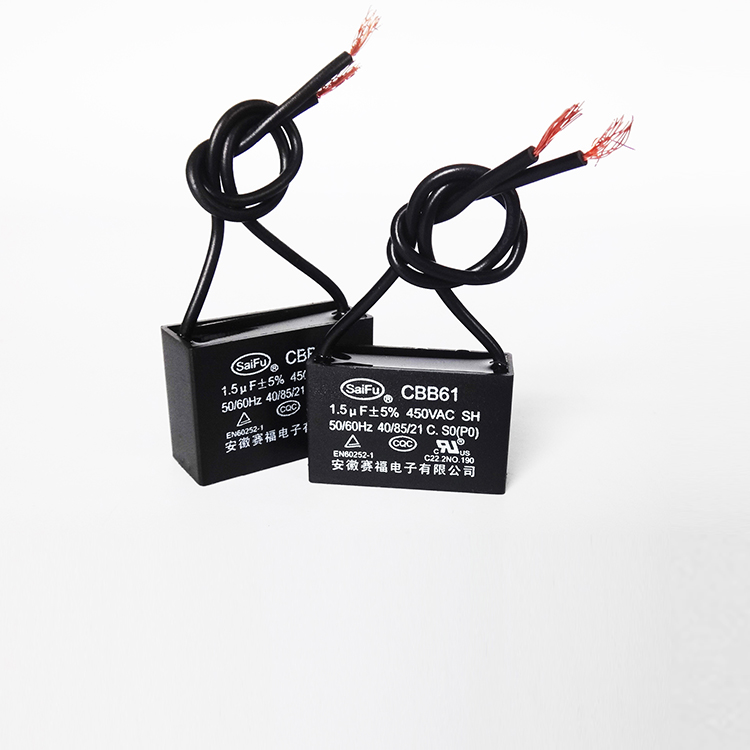

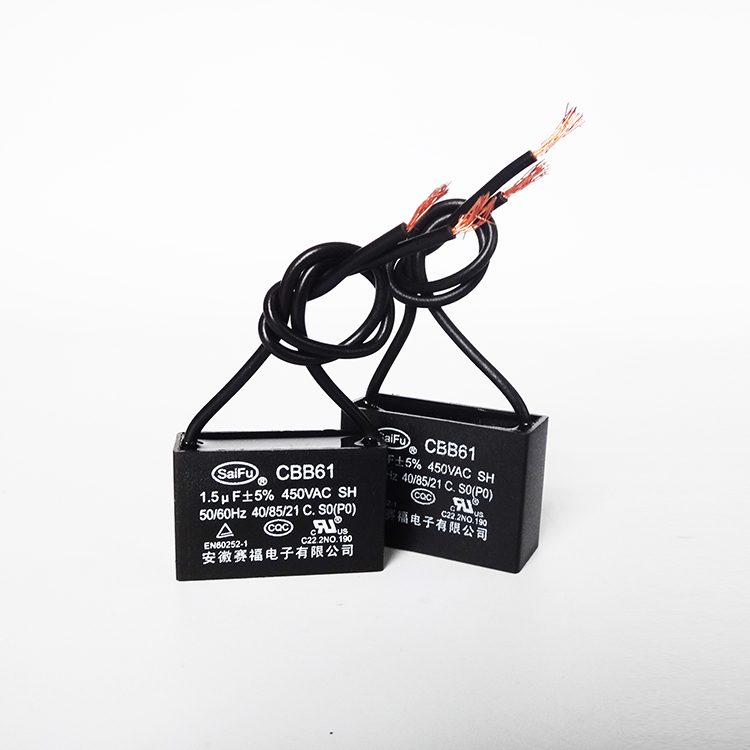

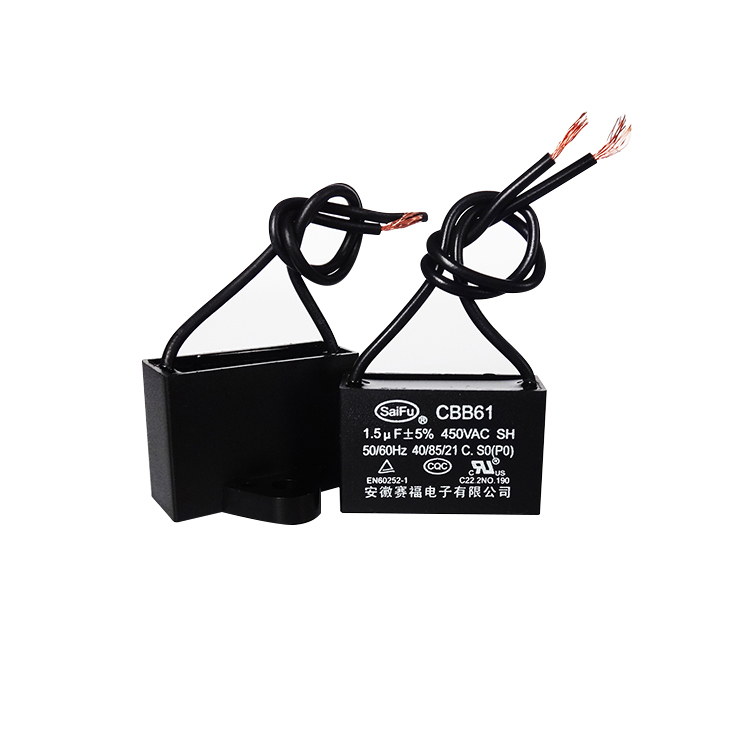

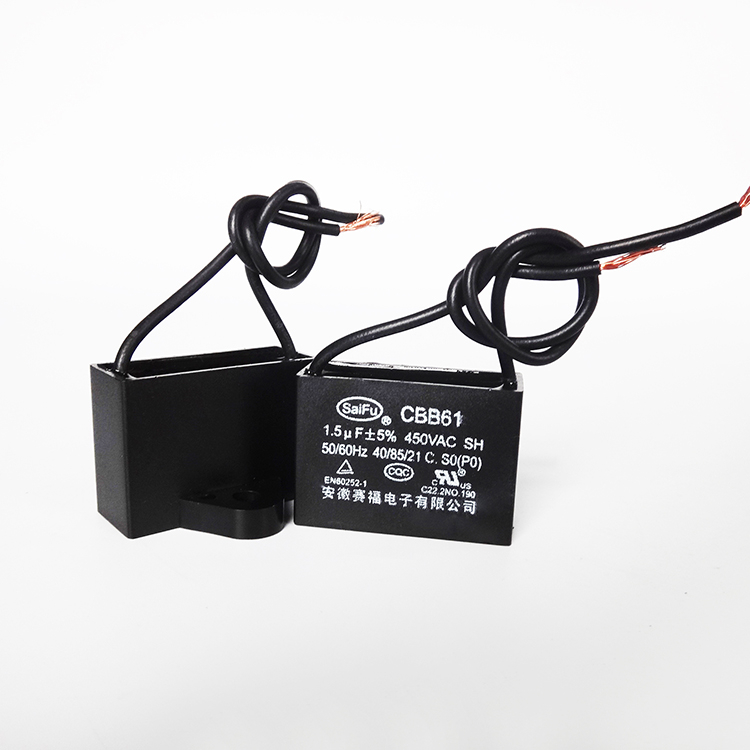

CBB61(ac capacitor)-450VAC-1.5uf

Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
Self-healing property
High stability and reliability
  • Wire

  • <= 10uf

  • 250VAC

  • CBB61

Availability:
Quantity:

1.  Specifications

 Reference  standards GB/T 3667.1 IEC60252-1) EN60252-1
 Climatic category40 / 70 / 2140 / 85 / 21
 Class of operationClass B (10000h)    Class C (3000h)
Class of safety protection(P0/P2)S0/S3
 Voltage range   200500VAC
 Capacitance range135μF
 Capacitance tolerance    ± 5%  ± 10%
 Dissipation factor20 x10-4 (100Hz,20°C)
Test voltage terminal to terminal  UTT  2Un for 2 seconds
Test voltage terminal to case UTC (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
  Insulation resistance 3000s (100Hz20°C1min)


2.  Dimensions(mm)

NO.Specifications450VAC250VAC
11μF37×13×2337×13×23
21.2μF37×13×2337×13×23
31.5μF37×14×2537×13×23
42μF37×16×2837×13×23
52.5μF37×18×2837×14×25
63μF47×18×2937×14×25
73.5μF47×18×3437×16×28
84μF47×18×3437×16×28
94.5μF47×22×3437×16×28
105μF47×22×3437×18×28
115.5μF47×22×3437×18×28
126μF47×22×3447×18×29
136.5μF48×26×3847×18×29
147μF48×26×3847×18×29
158μF48×26×3847×18×34
1610μF58×26×4447×22×34
1712μF58×26×4447×22×34
1815μF58×26×4447×22×34
1916μF58×26×4448×26×38
2020μF58×35×4948×26×38
2125μF58×35×4948×26×38
2230μFnegotiable58×26×44
2335μFnegotiable58×26×44
