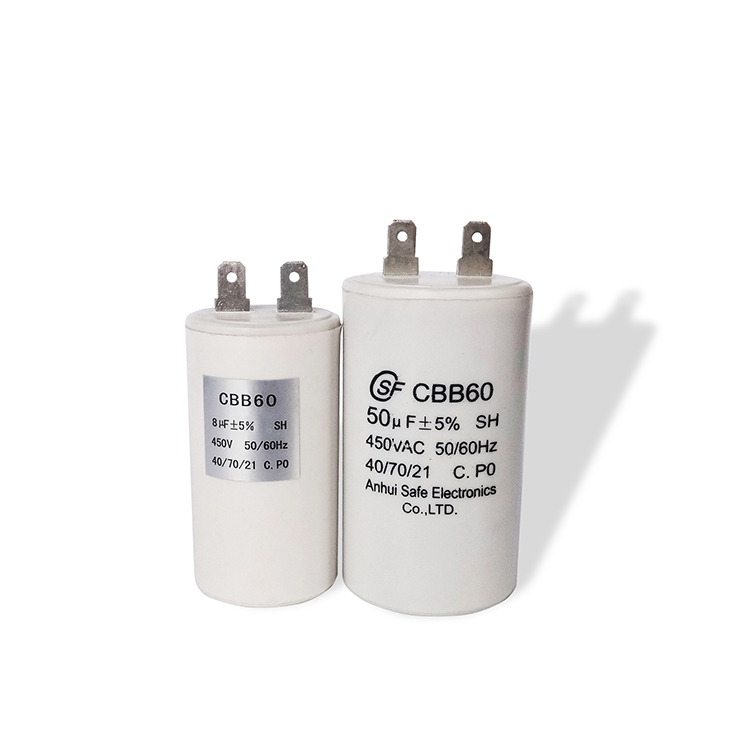

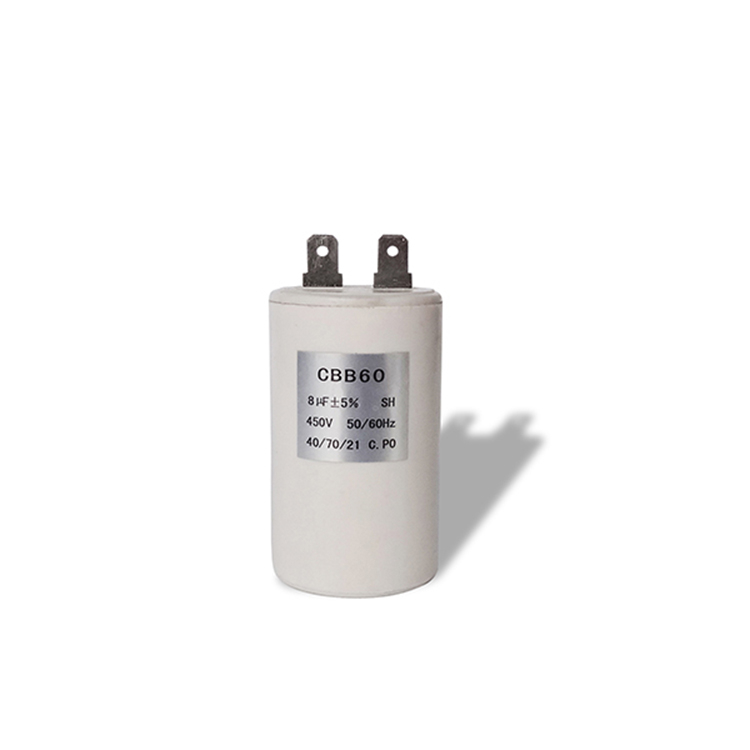

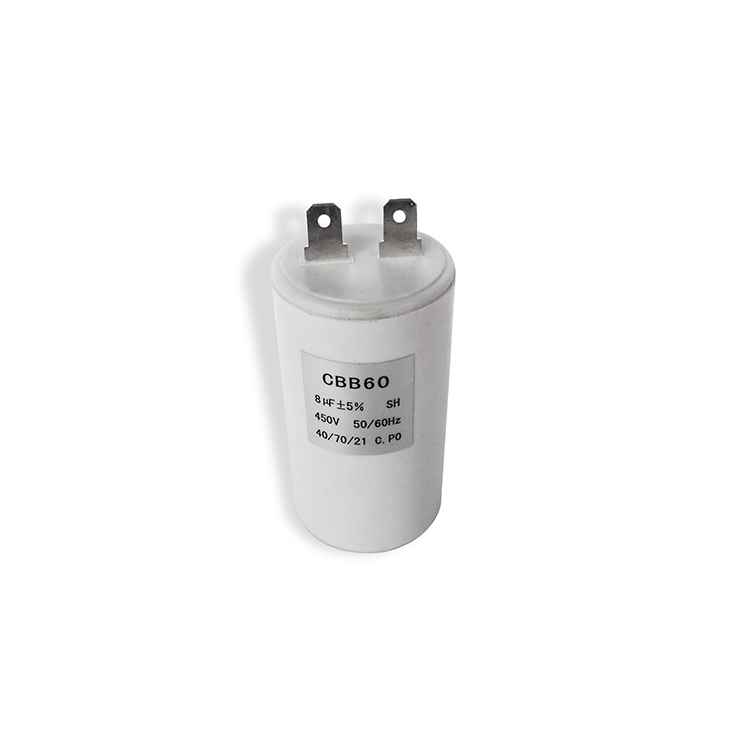

CBB60
| Quantity: | |
|---|---|
Description of Product:
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size,reliable performance and long endurance.
Technical Specifications:
Reference standards | GB/T 3667.1 ( IEC60252-1 ) EN60252-1 |
Climatic category | 40/70/21,40/85/21 |
Class of operation | Class B(10000h) Class C(3000h) |
Class of safety protection | P0/P2 |
Voltage range | 200~500VAC |
Capacitance range | 1~35μF |
Capacitance tolerance | ±5%(J) ±10%(K) |
Dissipation factor | 20×10-4(100Hz,20℃) |
Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
Insulation Resistance | ≥3000MΩ. μF(100Hz,20℃,1min) |
Dimensions(mm):
Specifications | 450VAC | 250VAC |
1μF | 37×13×23 | 37×13×23 |
1.2μF | 37×13×23 | 37×13×23 |
1.5μF | 37×14×25 | 37×13×23 |
2μF | 37×16×28 | 37×13×23 |
2.5μF | 37×18×28 | 37×14×25 |
3μF | 47×18×29 | 37×14×25 |
3.5μF | 47×18×34 | 37×16×28 |
4μF | 47×18×34 | 37×16×28 |
4.5μF | 47×22×34 | 37×16×28 |
5μF | 47×22×34 | 37×18×28 |
5.5μF | 47×22×34 | 37×18×28 |
6μF | 47×22×34 | 47×18×29 |
6.5μF | 48×26×38 | 47×18×29 |
7μF | 48×26×38 | 47×18×29 |
8μF | 48×26×38 | 47×18×34 |
10μF | 58×26×44 | 47×22×34 |
12μF | 58×26×44 | 47×22×34 |
15μF | 58×26×44 | 47×22×34 |
16μF | 58×26×44 | 47×26×38 |
20μF | 58×35×49 | 47×26×38 |
25μF | 58×35×49 | 47×26×38 |
30μF | Negotiable | 58×26×44 |
35μF | Negotiable | 58×26×44 |
Note：Other specifications,size and terminal outside table are negotiable.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners’ fans,electric fans and exhaust fans etc.at comparatively low rated power.
